hot spring bathing, hospitals, office buildings, residential areas, dormitory buildings for winter heating, sauna steam rooms, printing and dyeing textiles, factories, offices, schools, medical and pharmaceutical, hotel catering, food processing, chemical plants, socks factory heat setting, clothing processing, industrial steam washing, farm heating and drying, etc.Welcome to consult.
|
Boiler type
|
ZFQ 0.1
|
ZFQ 0.2
|
ZFQ 0.3
|
ZFQ 0.5
|
ZFQ 0.7
|
ZFQ 1.0
|
ZFQ 1.5
|
ZFQ2.0
|
|
Rated steam pressure(MPa)
|
0.4/0.7/1.0/1.25
|
|||||||
|
Rated steam temperature(℃)
|
152/170/184/194
|
|||||||
|
Feed water temperature(℃)
|
20
|
|||||||
|
Thermal efficiency(%)
|
≥83%
|
|||||||
|
Biomass consumption(Kg/h)
|
15
|
39
|
58.5
|
97.5
|
136.5
|
195
|
292.5
|
390
|
|
Coal consumption(Kg/h)
|
10
|
27
|
36
|
54
|
72
|
109
|
163
|
218
|
|
Transport reference weight(T）
|
0.8
|
1.1
|
1.3
|
1.6
|
2
|
2.5
|
3.5
|
5.5
|

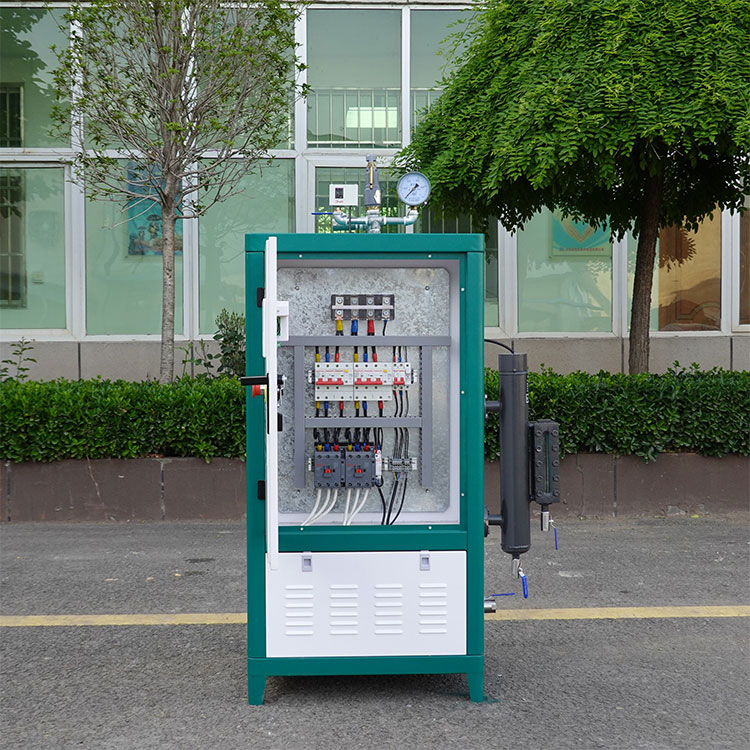

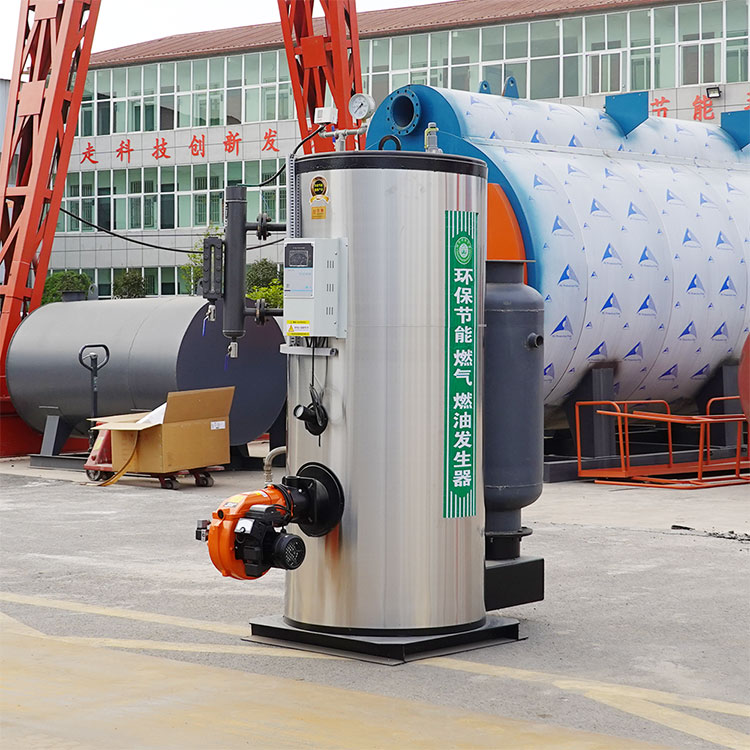

1. Supports electric, natural gas, fuel oil and biomass. Select proper heat source according to local energy cost, supply condition and environmental requirements to cut overall operating cost.

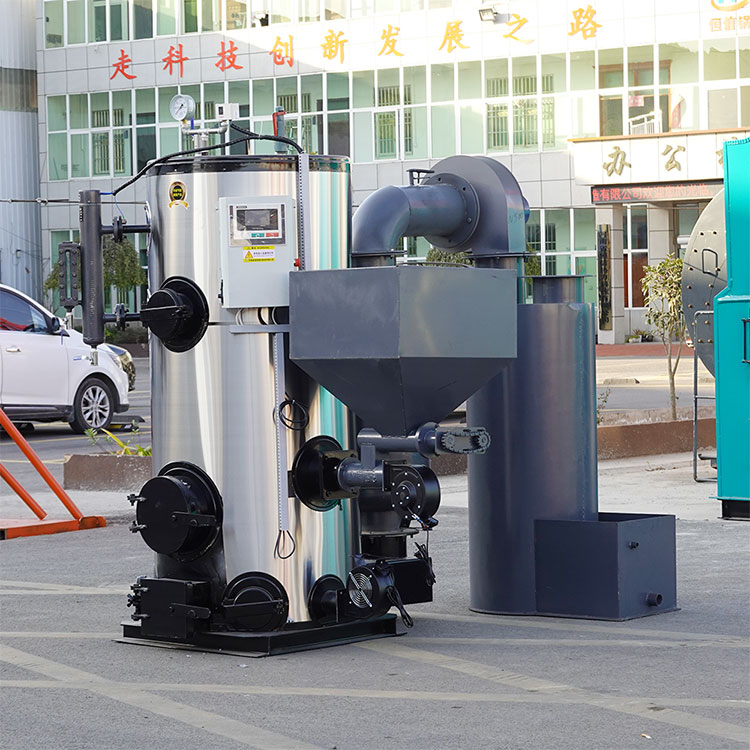

2. Integrated vertical construction, no dedicated boiler room needed. Easy transportation & placement, suitable for workshops with limited space.
3. Intelligent control system realizes auto water supply, pressure &temperature regulation. Auto alarm & shutdown under fault conditions. Simple interface, easy for ordinary staff to operate, save labor
4. Built in interlock protections against over pressure, water shortage, flame out, over heat and electric leakage. Effectively avoid dry burning and over pressure risks for long term continuous operatio
5. Pre assembled unit, only water, power and fuel connection needed on site. Modular components for easy inspection & replacement. Ideal for steaming, curing, disinfection
