hot spring bathing, hospitals, office buildings, residential areas, dormitory buildings for winter heating, sauna steam rooms, printing and dyeing textiles, factories, offices, schools, medical and pharmaceutical, hotel catering, food processing, chemical plants, socks factory heat setting, clothing processing, industrial steam washing, farm heating and drying, etc.Welcome to consult.
| WNS0.5 | WNS1 | WNS2 | WNS3 | WNS4 | WNS5 | WNS6 | WNS8 | WNS10 | |
| Rated steam capacity(T/h) | 0.5 | 1 | 2 | 3 | 4 | 5 | 6 | 8 | 10 |
| Rated steam pressure(MPa) | 0.7/1.0/1.25/1.6/2.5 | ||||||||
| Rated steam temperature(℃) | 170/184/194/204/226 | ||||||||
| Feed water temperature(℃) | 20-70 | ||||||||
| Thermal efficiency(%) | ≥93 | ||||||||
| Gas consumption(m³/h) | 39 | 79 | 157 | 236 | 314 | 390 | 471 | 629 | 786 |
| Liquefied gas consumption(m³/h) | 31 | 63 | 126 | 189 | 251 | 310 | 377 | 503 | 629 |
| City gas consumption(m³/h) | 83 | 165 | 330 | 495 | 660 | 825 | 990 | 1320 | 1650 |
| Light diesel consumption(Kg/h) | 32 | 65 | 129 | 194 | 259 | 323 | 388 | 518 | 647 |
| Heavy oil consumption(Kg/h) | 33 | 66 | 132 | 198 | 264 | 330 | 396 | 528 | 660 |
| Maximum shipping weight(T) | 2.5 | 5.4 | 8 | 10 | 12.4 | 14 | 15.5 | 22 | 26.55 |

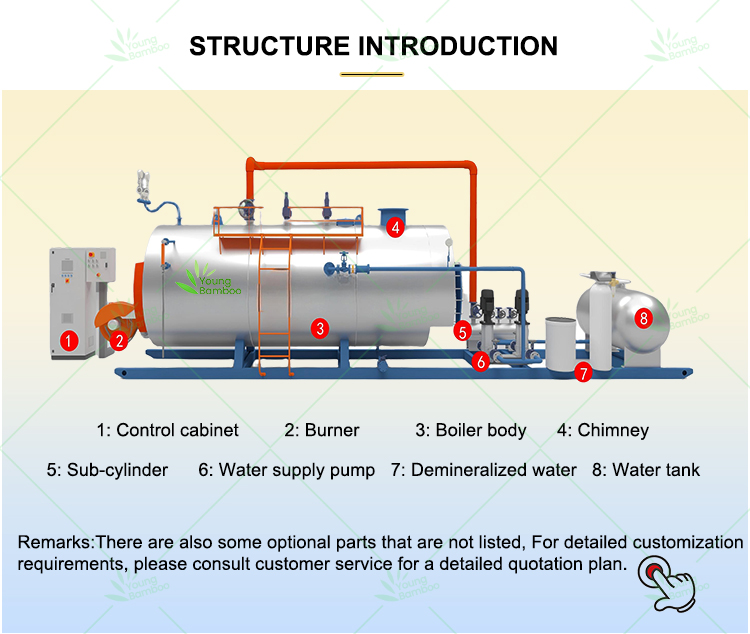

1. Boiler know-how The fully wet back reburning chamber, the reburning chamber is butt-butt with the rear pipe plate, and the boiler is fully butt-welded to reduce stress and make the quality more reliable.
2. Large diameter corrugated furnace tank The boiler combustion chamber is composed of a large-diameter fully corrugated furnace tank, with a large combustion space, complete fuel combustion, effective absorption of thermal expansion, and large radiation heating surface.
3. Sufficient heat The heating area of the boiler is designed and configured according to ≥25m2/steaming ton, which fully absorbs effective heat, has a low exhaust temperature and low heat loss, ensuring sufficient output and high efficiency.
4. High steam quality The diameter of the pot shell is large, the water capacity is large, the adaptability to load changes is strong, and the output is stable; the steam space volume is large, the net distance between the soda interface and the steam outlet is high enough, and the steam humidity is small.
5. Sufficient precipitation time The combustion chamber of the boiler is arranged at a low level, and the water level is determined to comply with the regulations. At the same time, it strictly complies with the water level fluctuation time requirements of the general specifications and standards, and has sufficient precipitation space to ensure the operation of the boiler.
