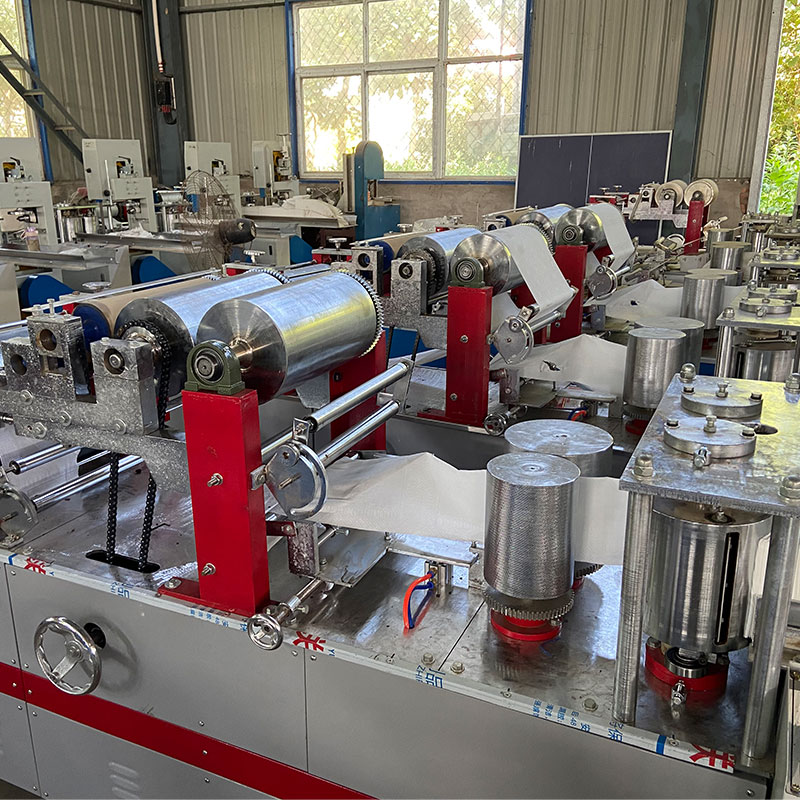

Young Bamboo Embossed Napkin Folder is for the production of square or rectangular napkin paper. The parent jumbo rolls which have been slit into the desired width are embossed, automatically folded into finished products of napkins. The machine is equipped with electrical shifting device, which can mark the sheet counts of each bundle required, making it easy for packaging. The embossing rolls can be heated by the heating elements, which can make the embossing patterns clearer and better. Depending on the requirement of customer, the machine can be built to make the 1/4,1/6 and 1/8,etc folding.
| Model | YB-220/240/260/280/300/330/360/400 |
| Raw material diam | <1150 mm |
| Control system | Frequency control, electromagnetic governor |
| Embossing roller | Cots,Wool Roll,Steel to Steel |
| Embossing type | Customized |
| Voltage | 220V/380V |
| Power | 4-8KW |
| Production speed | 0-900 sheets/minute |
| Counting system | Automatic electronic counting |
| Printing method | Rubber Plate Printing |
| Printing type | Single or Double Color Printing (Optioned) |
| Folding Type | V/N/M Type |
1. Transmission belt drive system;
2. Color printing device adopts flexible printing,the design can be special design for you,
3. Pattern matching paper rolling device, pattern significantly;
4. Electronic counting dislocation row of output;
5. Folding board with mechanical hand to fold paper shape, and then cutting by bandsaw cutter;
6. Other standard models can be customized.
