hot spring bathing, hospitals, office buildings, residential areas, dormitory buildings for winter heating, sauna steam rooms, printing and dyeing textiles, factories, offices, schools, medical and pharmaceutical, hotel catering, food processing, chemical plants, socks factory heat setting, clothing processing, industrial steam washing, farm heating and drying, etc.Welcome to consult.
|
project
|
YDW-36KW-D
|
YDW-72KW-D
|
YDW-120KW-D
|
YDW-180KW-D
|
YDW-240KW-D
|
YDW-360KW-D
|
YDW-480KW-D
|
YDW-600KW-D
|
|
|
Rated thermal power(KW)
|
36
|
72
|
120
|
180
|
240
|
360
|
480
|
600
|
|
|
Design pressure (MPa)
|
0.7
|
0.7
|
0.7
|
0.7
|
0.7
|
0.7
|
0.7
|
0.7
|
|
|
Rated oil outlet temperature (℃)
|
310
|
310
|
310
|
310
|
310
|
310
|
310
|
310
|
|
|
Body oil storage(m³)
|
0.03
|
0.08
|
0.1
|
0.14
|
0.21
|
0.35
|
0.4
|
0.48
|
|
|
thermal efficiency(%)
|
98
|
98
|
98
|
98
|
98
|
98
|
98
|
98
|
|
|
Power frequency (Hz)
|
50
|
50
|
50
|
50
|
50
|
50
|
50
|
50
|
|
|
supply voltage(V)
|
380
|
380
|
380
|
380
|
380
|
380
|
380
|
380
|
|
|
Installed capacity of the whole system(KW)
|
40
|
80
|
130
|
190
|
250
|
390
|
500
|
624
|
|
|
Oil pump power(KW)
|
2.2
|
2.2
|
2.2
|
4
|
5.5
|
7.5
|
11
|
15
|
|
|
Output pipe diameter(DN)
|
25
|
40
|
40
|
65
|
65
|
80
|
80
|
80
|
|
|
Transport reference weight(KG)
|
450
|
600
|
720
|
1100
|
1300
|
1900
|
2500
|
3200
|
|
|
Transport reference dimension
|
long(MM)
|
1400
|
1600
|
1700
|
1800
|
2650
|
3200
|
3950
|
4270
|
|
wide(MM)
|
600
|
700
|
1100
|
1250
|
1420
|
1600
|
1650
|
1800
|
|
|
high(MM)
|
1100
|
1200
|
1400
|
1820
|
2040
|
2100
|
2300
|
2500
|
|

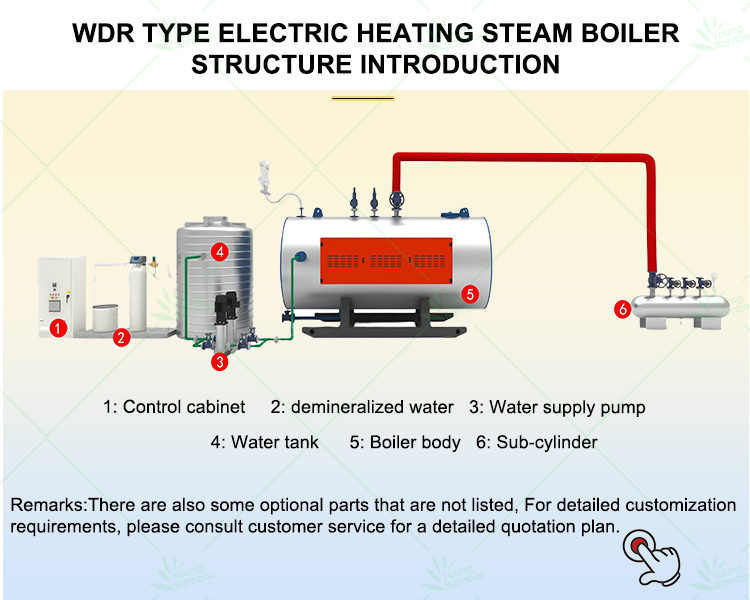

1. Boiler know-how
The fully wet back reburning chamber, the reburning chamber is butt-butt with the rear pipe plate, and the boiler is fully butt-welded to reduce stress and make the quality more reliable.
2. Large diameter corrugated furnace tank
The boiler combustion chamber is composed of a large-diameter fully corrugated furnace tank, with a large combustion space, complete fuel combustion, effective absorption of thermal expansion, and large radiation heating surface.
3. Sufficient heat
The heating area of the boiler is designed and configured according to ≥25m2/steaming ton, which fully absorbs effective heat, has a low exhaust temperature and low heat loss, ensuring sufficient output and high efficiency.
4. High steam quality
The diameter of the pot shell is large, the water capacity is large, the adaptability to load changes is strong, and the output is stable; the steam space volume is large, the net distance between the soda interface and the steam outlet is high enough, and the steam humidity is small.
5. Sufficient precipitation time
The combustion chamber of the boiler is arranged at a low level, and the water level is determined to comply with the regulations. At the same time, it strictly complies with the water level fluctuation time requirements of the general specifications and standards, and has sufficient precipitation space to ensure the operation of the boiler.
6. Multifunctional explosion-proof device
The rear panel of the boiler is equipped with an explosion-proof device in communication with the furnace to prevent the fuel from exploding violently in the furnace, and the high energy generated instantly is discharged, which can be automatically reset. At the same time, it has the function of a fire-watching mirror and an access channel. , Using the adjustment of the combustion flame during operation, the furnace is easy to inspect and maintain.
7. Easy maintenance in the pot
The top of the boiler is provided with manholes, and the middle and lower parts of the front and rear ends of the boiler are respectively provided with hand hole devices to facilitate the inspection and cleaning of the equipment in the pot and the bottom of the boiler.
